iOS Messaging Integration

Integrating the Cloud Messaging plugin on iOS devices requires additional setup before your devices receive messages. There are also a number of prerequisites which are required to be able to enable messaging:

Configuring your app

Before your application can start to receive messages, you must explicitly enable "Push Notifications" and "Background Modes" within Xcode.

Open your project workspace file via Xcode (/ios/Runner.xcworkspace). Once open, follow the steps below:

  1. Select your project.
  2. Select the project target.
  3. Select the "Signing & Capabilities" tab.

Xcode - Navigate to Signing & Capabilities

Enable Push Notifications

Next the "Push Notifications" capability needs to be added to the project. This can be done via the "Capability" option on the "Signing & Capabilities" tab:

  1. Click on the "+ Capabilities" button.
  2. Search for "Push Notifications".

Xcode - Enabling the Push Notification capability

Once selected, the capability will be shown below the other enabled capabilities. If no option appears when searching, the capability may already be enabled.

Enable Background Modes

Next the "Background Modes" capability needs to be enabled, along with both the "Background fetch" and "Remote notifications" sub-modes. This can be added via the "Capability" option on the "Signing & Capabilities" tab:

  1. Click on the "+ Capabilities" button.
  2. Search for "Background Modes".

Xcode - Enabling Background Modes capability

Once selected, the capability will be shown below the other enabled capabilities. If no option appears when searching, the capability may already be enabled.

Now ensure that both the "Background fetch" and the "Remote notifications" sub-modes are enabled:

Xcode - Enabling Background Modes
Xcode - Enabling Background Modes

Linking APNs with FCM (iOS)

Note: APNs is required for both foreground and background messaging to function correctly on iOS.

A few steps are required:

  1. Registering a key.
  2. Registering an App Identifier.
  3. Generating a provisioning profile.

All of these steps require you to have access to your Apple Developer account. Once on the account, navigate to the Certificates, Identifiers & Profiles tab on the account sidebar:

Apple Developer portal - Certificates, Identifiers & Profiles

1. Registering a key

A key can be generated which gives the FCM full access over the Apple Push Notification service (APNs). On the "Keys" menu item, register a new key. The name of the key can be anything, however you must ensure the APNs service is enabled:

Apple Developer portal - Enable "Apple Push Notification (APNs)"

Click "Continue" & then "Save". Once saved, you will be presented with a screen displaying the private "Key ID" & the ability to download the key. Copy the ID, and download the file to your local machine:

Apple Developer portal - Copy Key ID & Download File

The file & Key ID can now be added to your Firebase Project. On the Firebase Console, navigate to the "Project settings" and select the "Cloud Messaging" tab. Select your iOS application under the "iOS app configuration" heading.

Upload the downloaded file and enter the Key ID:

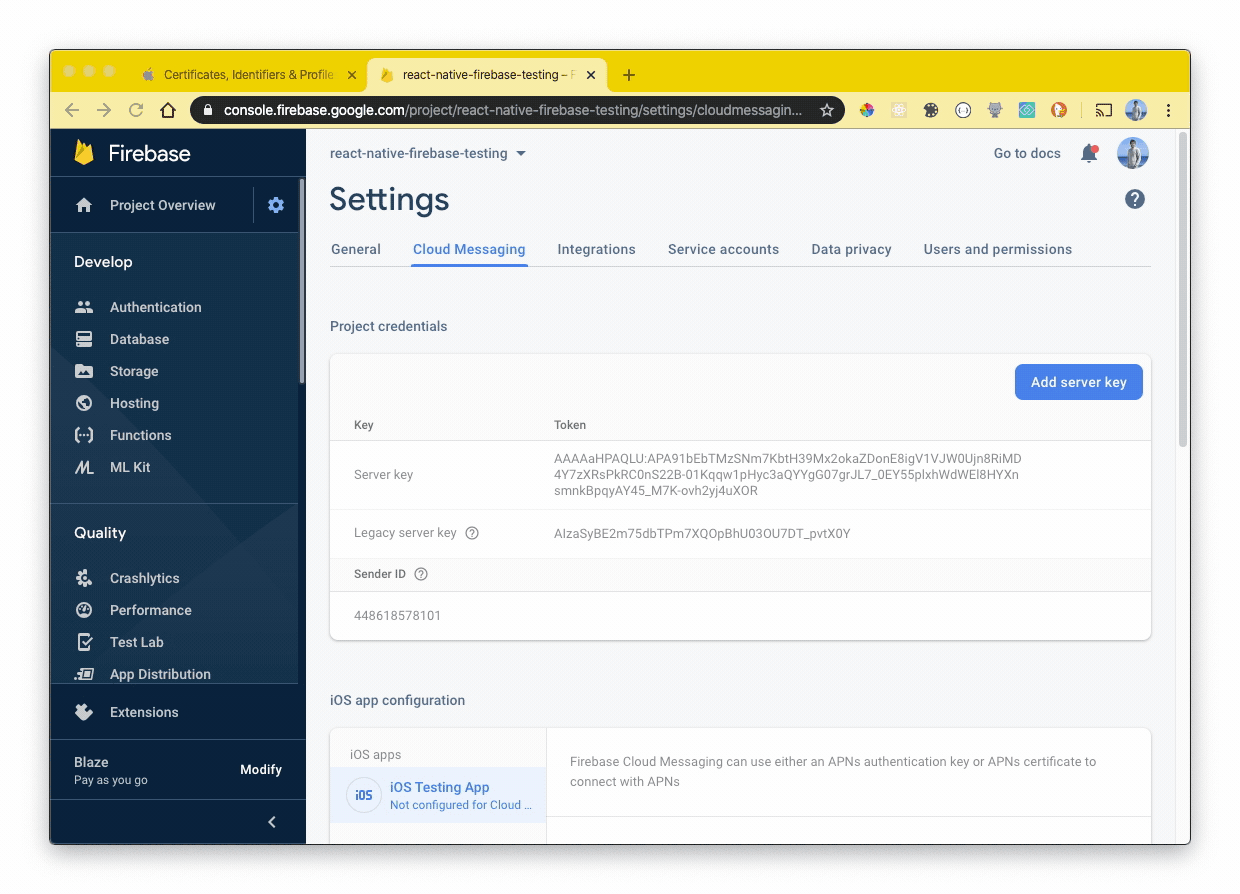

Firebase Console - Upload APNs auth key
Firebase Console - Upload APNs auth key

2. Registering an App Identifier

For messaging to work when your app is built for production, you must create a new App Identifier which is linked to the application that you're developing.

On the Apple Developer portal:

  1. Click the "Identifiers" side menu item.
  2. Click the plus button to register a App Identifier.
  3. Select the "App IDs" option and click "Continue".
  4. Select the "App" type option and click "Continue".

Apple Developer portal - Register a new identifier
Apple Developer portal - Register a new identifier

The "Register an App ID" page allows you to link the identifier to your application via the "Bundle ID". This is a unique string which was generated when starting your new Flutter project. Your Bundle ID can be obtained within Xcode, under the "General" tab for your project target:

Xcode - View Bundle ID

On the Apple Developer portal "Register an App ID" page, follow these steps to create your identifier:

  1. Enter a description for the identifier.
  2. Enter the "Bundle ID" copied from Xcode.
  3. Scroll down and enable the "Push Notifications" capability (along with any others your app uses).

Apple Developer portal - Register an App ID
Apple Developer portal - Register an App ID

Save the identifier, it'll be used when creating a provisioning profile in the next step.

3. Generating a provisioning profile

A provisioning profile enables signed communicate between Apple and your application. Since messaging can only be used on real devices, a signed certificate ensures that the app being installed on a device is genuine and has the correct permissions enabled.

On the "Profiles" menu item, register a new Profile. Select the "iOS App Development" checkbox and click "Continue".

If you followed Step 2 correctly, your App Identifier will be available in the drop down provided:

Apple Developer portal - Select App ID

Click "Continue". On the next screen you will be presented with the Certificates on your Apple account. Select the user certificates that you wish to assign this provisioning profile too. If you have not yet created a Certificate, you must set one up on your account.

To create a new Certificate, follow the Apple documentation. Once the Certificate has been downloaded, upload it to the Apple Developer console via the "Certificates" menu item.

The created provisioning profile can now be used when building your application (in both debug and release mode) onto a real device (using Xcode). Back within Xcode, select your project target and select the "Signing & Capabilities" tab. If Xcode (via Preferences) is linked to your Apple Account, Xcode can automatically sync the profile created above. Otherwise, you must manually add the profile from the Apple Developer console:

  1. Select the project.
  2. Select the project target.
  3. Assign the provisioning profile.

Xcode - Assign provisioning profile

Next steps

Once the above has been completed, you're ready to get started receiving messages on your iOS device for both testing and production.

Usage documentation will be available once the Firebase Firebase Cloud Messaging plugin update lands as part of the FlutterFire roadmap.
